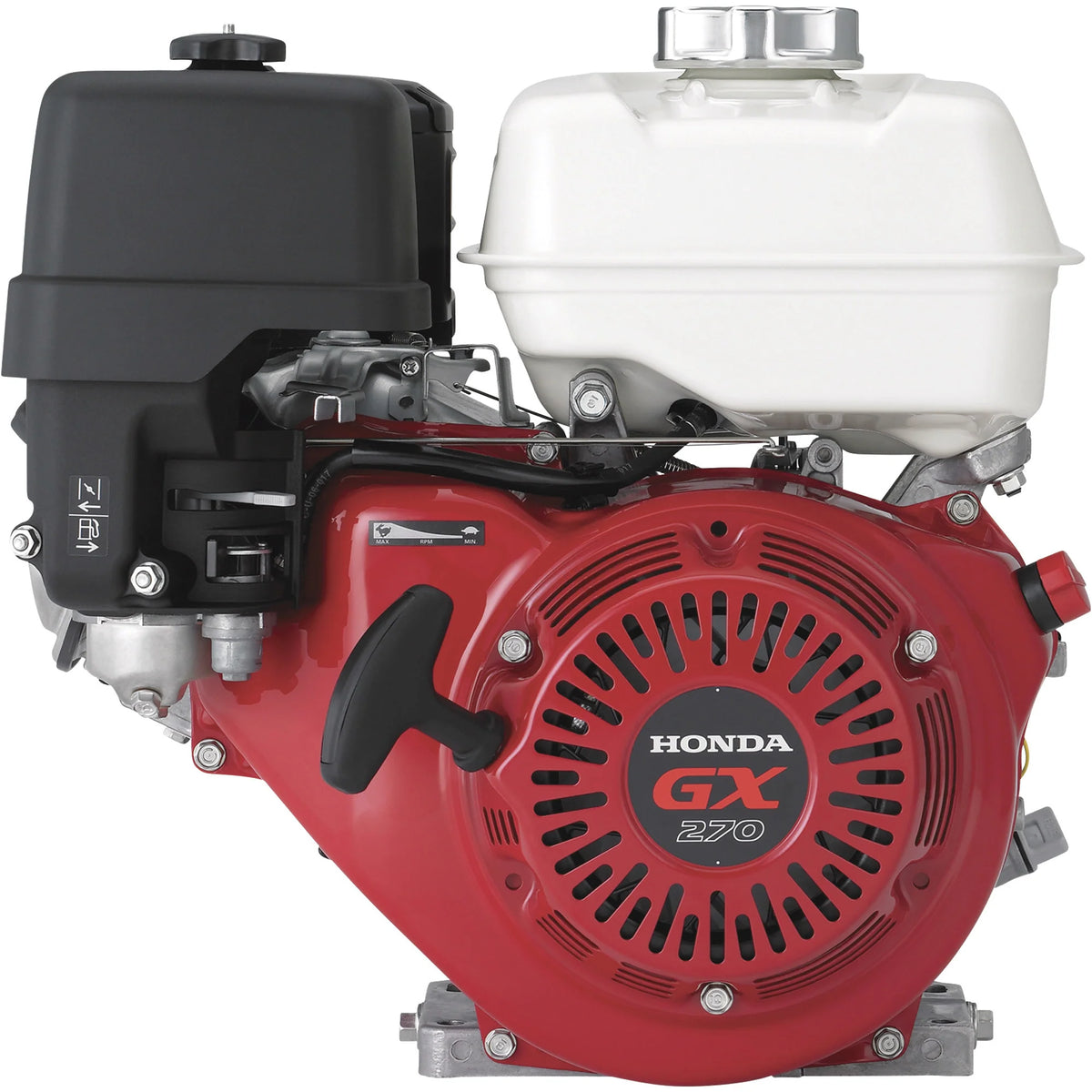

Honda Engines, HONDA ENGINE HORZ 270CC 2QAG2 Engine Displacement 270 cc, Engine Type GX Series OHV Commercial-duty, Shaft Diameter 1 in, Model# GX270UT2QAG2
$76.47
Skip to product information
The Honda 270cc GX Series OHV commercial-grade engine is designed for the most demanding commercial applications. It is reliable and durable, with an overhead valve design for cooler, fuel-efficient operation, and a cast iron cylinder sleeve for longer service life. Great for construction equipment. Other common applications include pressure washers, air compressors, go-karts, log splitters and chipper/shredders. Not for sale in CA.
Honda Engines, HONDA ENGINE HORZ 270CC 2QAG2 Engine Displacement 270 cc, Engine Type GX Series OHV Commercial-duty, Shaft Diameter 1 in, Model# GX270UT2QAG2
$76.47
- Model# GX270UT2QAG2; 270cc, 8.5 HP engine with 1in. x 3 31/64in. horizontal shaft
- OHV overhead valve design for increased efficiency and optimal power transfer
- Electronic ignition with ergonomic recoil design featuring automatic decompression for easy starts
- Bolt circle: 5in., 6 1/2in.; Mounting base: 7 11/16in. x 3 3/16-3 11/16in.
- Cast iron cylinder sleeve
- Ideal for use in construction equipment, pressure washers, air compressors, go-karts, log splitters and chipper/shredders
- Precision camshaft design for precise valve timing, optimal valve overlap and better fuel economy
- High compression ratio for better fuel efficiency
- Low vibration from precision-engineered components
- Ball bearing-supported crankshaft for greater stability
- Large-capacity, multi-chamber exhaust system for a low noise level
- Sophisticated air intake system
- Oil Alert for extra engine protection
- Carburetor filter and chamber coating help protect against fuel impurities
- Dual element air filter
- Simple throttle control
- Double walled heavy-duty 5.6-qt. tank with in-tank fuel strainer
- Large automotive-style fuel cap for easy filling
- Dual oil fills and drains for quick oil changes
- Easily accessible spark plug
| Attribute | Specification |
|---|---|
item# |
44373 |
Brand |
|
Manufacture's Warranty |
3 year limited warranty |
Ship Weight |
62.6 LB |
Engine Displacement |
270 cc |
Engine Type |
GX Series OHV Commercial-duty |
Shaft Diameter |
1 in |
Shaft Length |
3.48 in |
Start Type |
Recoil |
Shaft Keyway |
0.25 in |
Net Torque |
14.1 ft-lbs. |
Crankshaft |
Q-type |
PTO Height |
5.25 in |
Cylinders (qty.) |
1 |
Cylinder Bore |
Cast Iron |
Net Power Output |
8.5 HP |
Compression Ratio |
8.5:1 |
Fuel Tank |
Yes |
Fuel Tank Capacity |
5.6 qt |
| Attribute | Specification |
|---|---|
Oil Capacity |
1.16 qt |
Low Oil Shutdown |
Yes |
Low Oil Alert |
Yes |
Shaft Rotation (From PTO Shaft Side) |
Counter Clockwise |
Governor System |
Centrifugal Mechanical |
Ignition System |
Electronic |
Carburetor |
Float, External Vent |
Lubrication System |
Splash |
Bearing Type |
Ball |
Auto Compression Release |
Yes |
Cooling System |
Air |
Bore |
3 in |
Stroke |
2.3 in |
Air Cleaner Type |
Dual Element |
Choke Control |
Manual |
Throttle Control |
Manual |
Fuel Filter |
Yes |
Muffler Included |
Yes |
