DS18 NXL-M5 Full Range 5 Channel Class D Amplifier - 4 x 150W @ 4-Ohm 1 x 600W RMS @ 2-Ohm NXL-M5

BRAND NEW

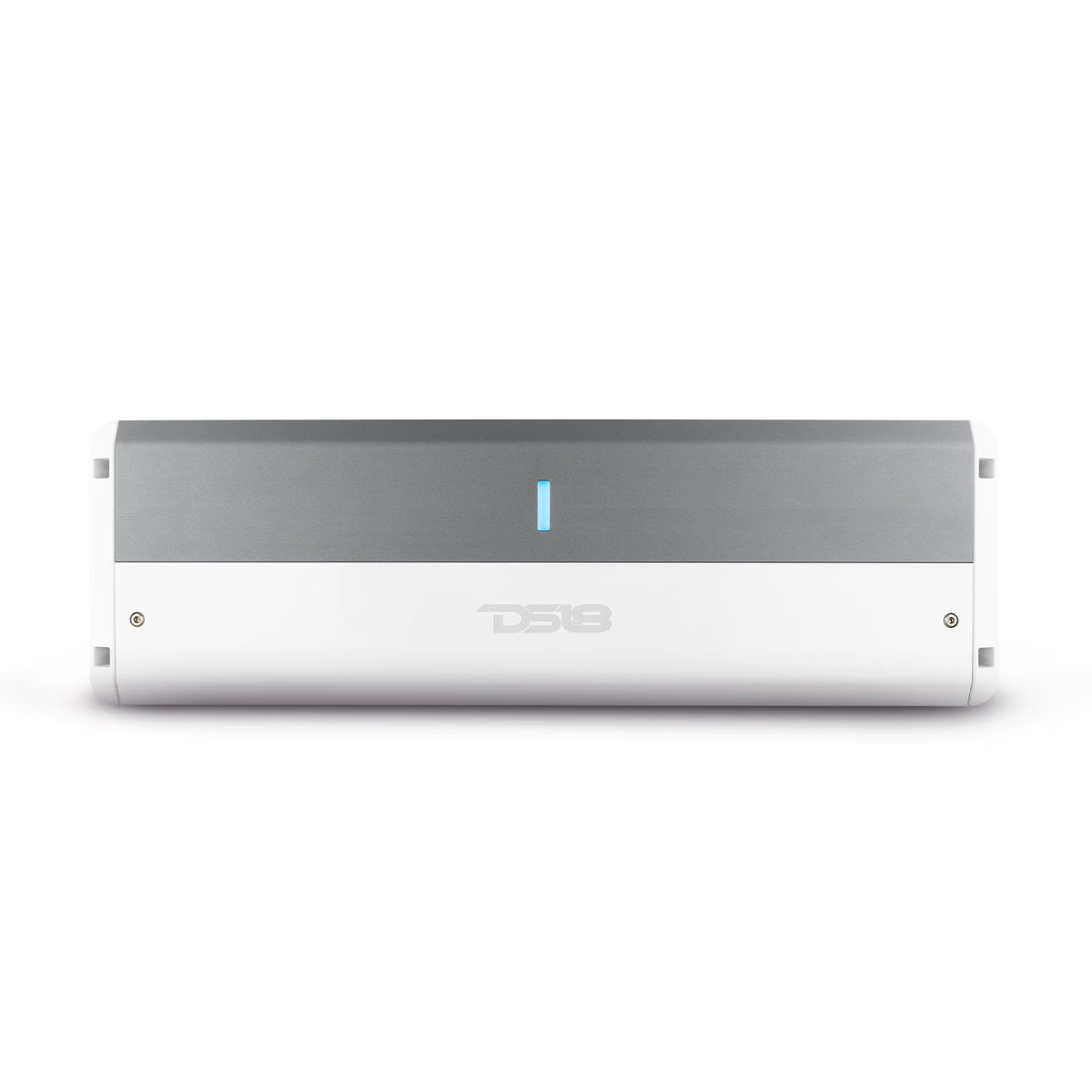

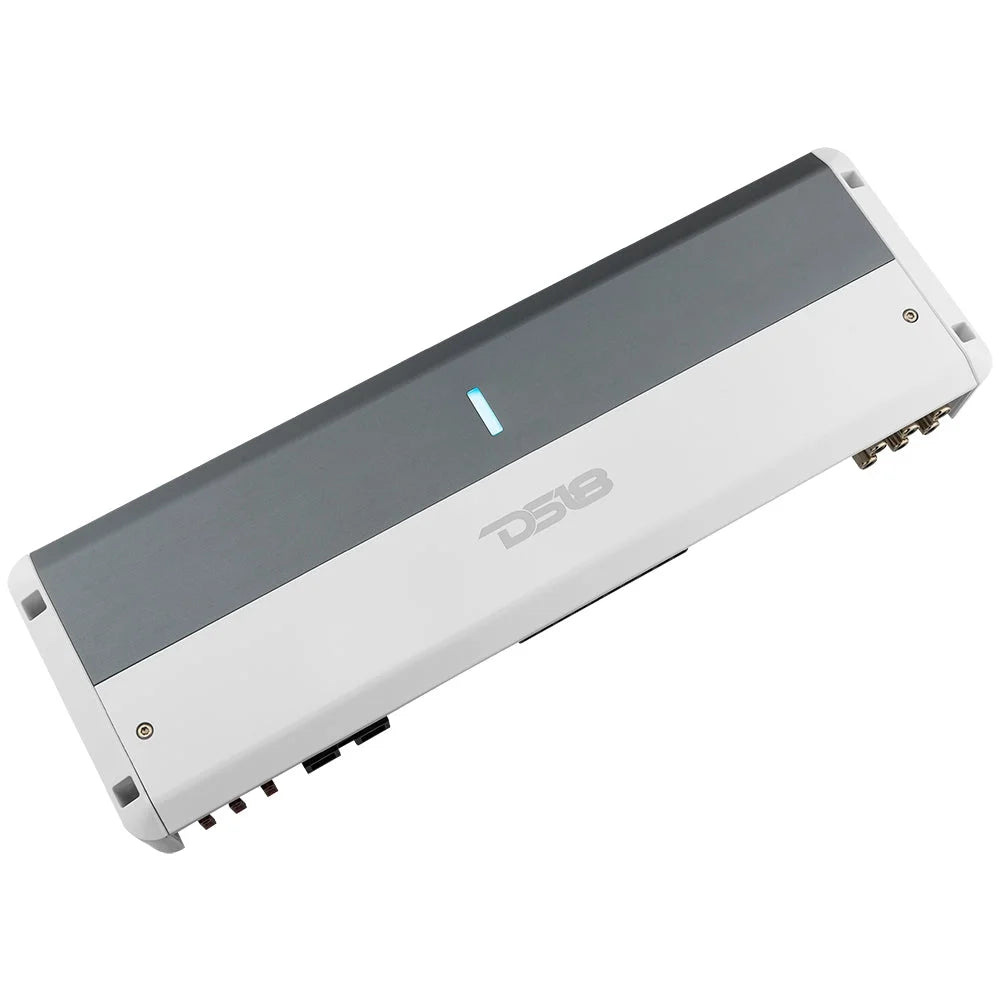

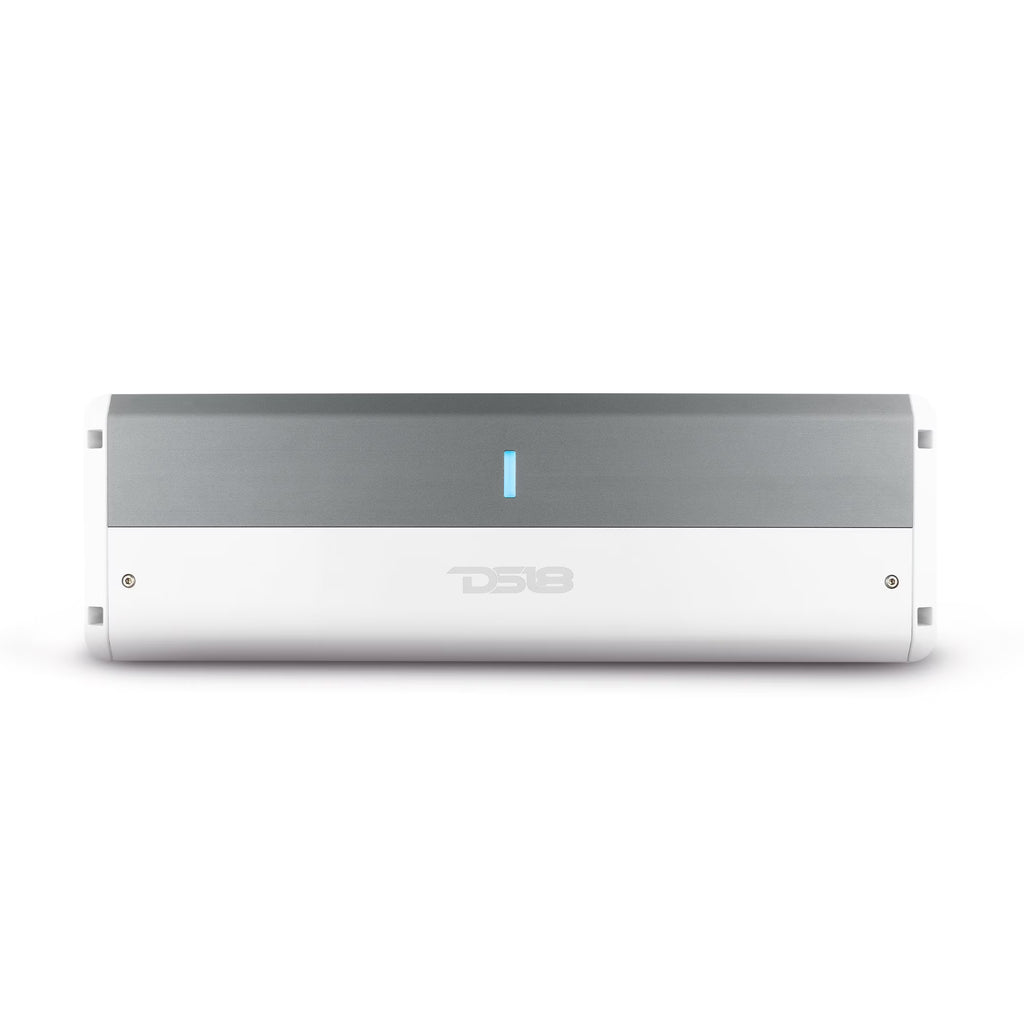

DS18 NXL-M5

5-Channel 3600 Watts Max Full-Range Class-D Marine Powersports Amplifier

Highlights:

• Hardware resistant to corrosion and UV protection
• Coated 4 Layers PCB to prevent corrosion
• Class D Circuit Design
• IPX5 Water resistant grade
• Front cover to keep the controls safe to the elements
• LED Clip Indicator to easier adjustment
• High-Quality Potentiometers with copper shaft
• Surface Mount Component Technology
• Audio Precision Quality Control Verification

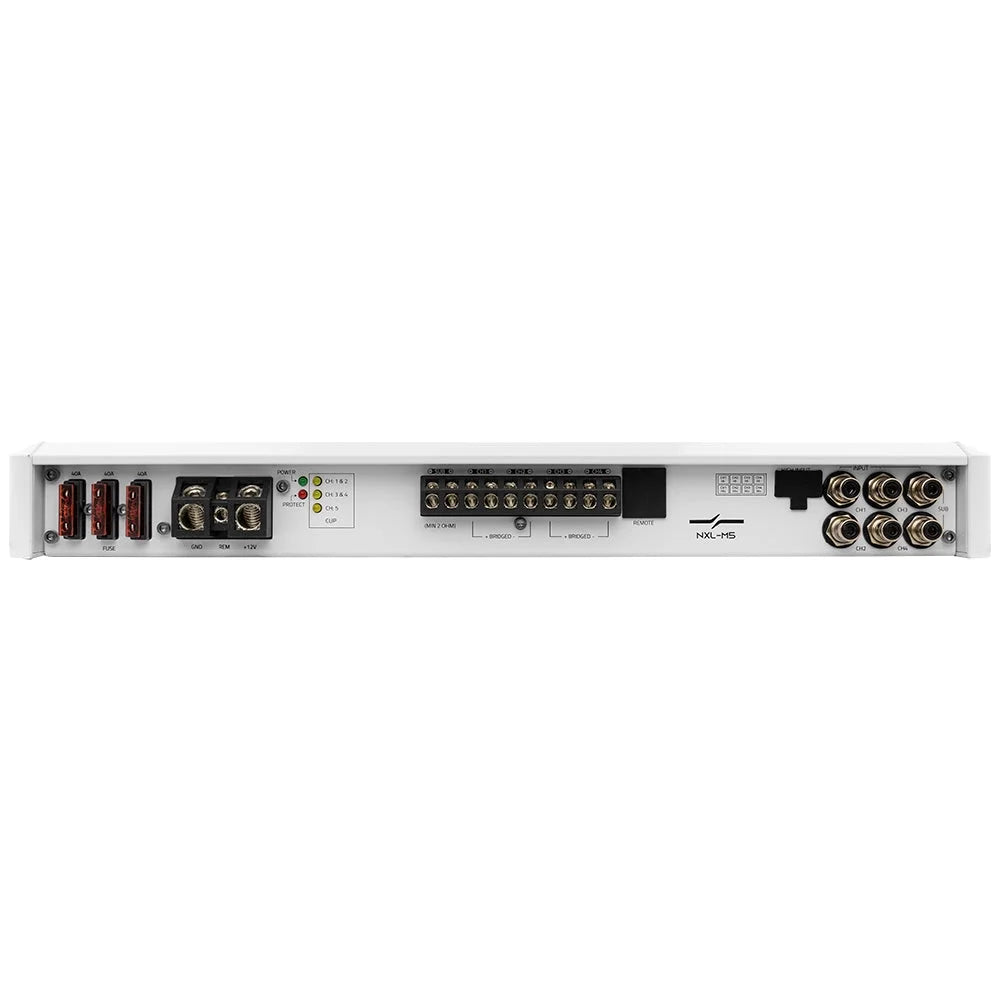

• Direct Insert Power and Speaker Terminals
• Short Circuit, Thermal, and Voltage Protection
• Waterproof Remote level bass knob specially designed for easy installation on the panel's boat or wet areas.
• DS18 Quality You Can Trust
• Effortless Installation DS18 is Known For
• Unleash Unprecedented Power

Specifications:

Power

• Total Watts (Peak): 3600W
• RMS Power @ 4 ohm: 4 x 150W / SUB: 300W
• RMS Power @ 2 ohm: 4 x 230W / SUB: 600W
• RMS Power @ 4 ohm Bridge: 2 x 440W

Audio

• Frequency Response: 20Hz - 20KHz
• Signal to Noise Ratio: >90dB
• Efficiency @ 4ohm: >97%
• Channel Separation: >55dB
• Total Harmonic Distortion (THD): <0.15%
• Low-Level Input Range: 0.2V-6V
• High-Level Input: Yes: 5V

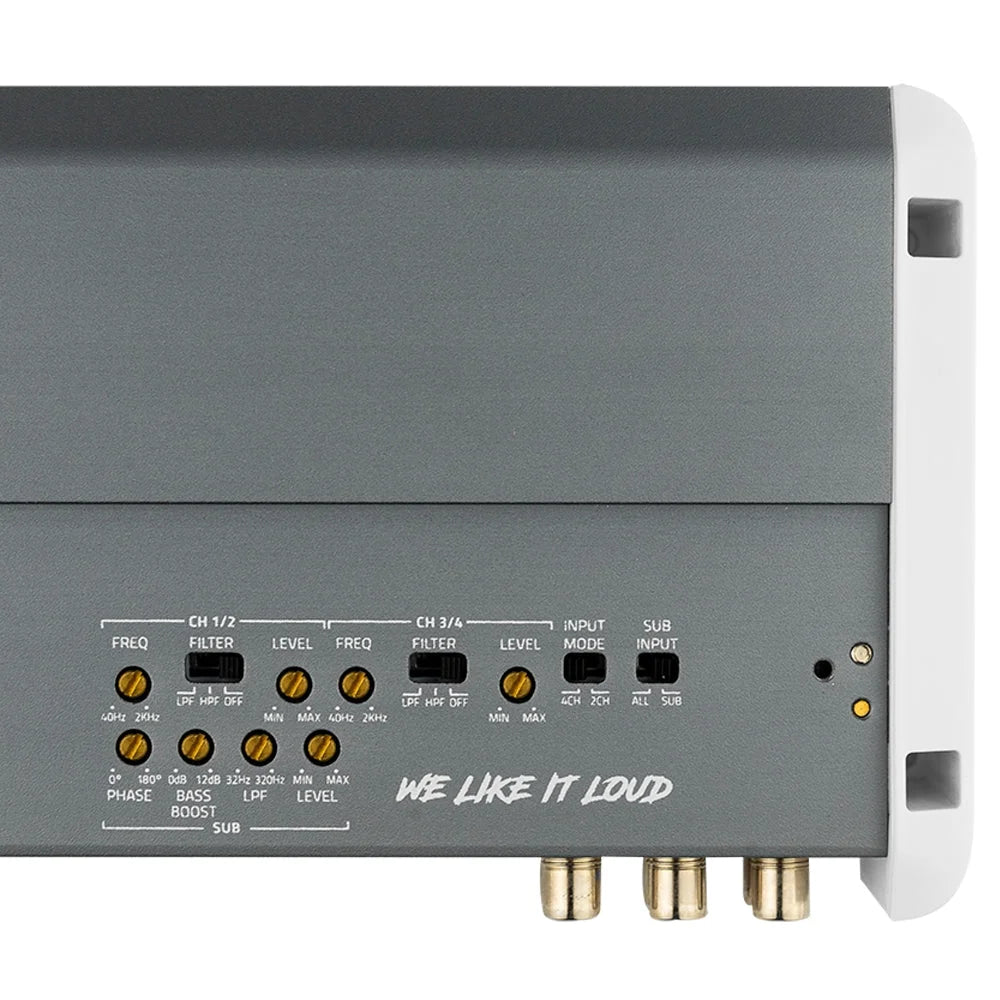

• Selectable X-Over: HPF/LPF/FULL / SW: Fixed LPF
• X-Over Filter Range: 40Hz - 2KHz / SW: 32Hz - 320Hz
• Bass Boost Range: 0-12dB (SW)
• Bass Boost Frequency: 45Hz 5Hz
• Phase Selector: Yes 0~180 (SW)

Features

• Amplifier Class: Digital (D)
• Amplifier Type: Stereo Full Range
• Number of Channels: 5 Channels
• Minimum Impedance: 2ohm St / 4ohm Bridge / 2ohm SW
• Led Indicator: Clipping / Protect / Power
• Power Input Terminal Size: 4 Ga
• Fuse Size: 120A (3x40A)
• Thermal Protection: Yes
• Over-Load Protection: Yes
• DC Output Protection: Yes
• Short Circuit Output Protection: Yes
• Voltage Input Protection: Yes
• Clipping Protection: Yes
• Body Color / Finish: Gray+White / Aluminum+ABS

Extra Features

• Water Resistant Rated: Yes, IPX5 (Water Splashing)
• PCB Layout Design: 4 Layers / Coated
• RCA Output: No
• UV Compliant: Yes, UV Protected and PCB Coated
• Input Sum Selector: Yes, 2/4/5 Ch Input Mode
• Tiffany Style RCA: Yes
• High-Level Input: Yes, 4ch Speaker level
• Stainless Steel Hardware: Yes, (Screws)
• Potentiometers: High-Quality Metal Knob

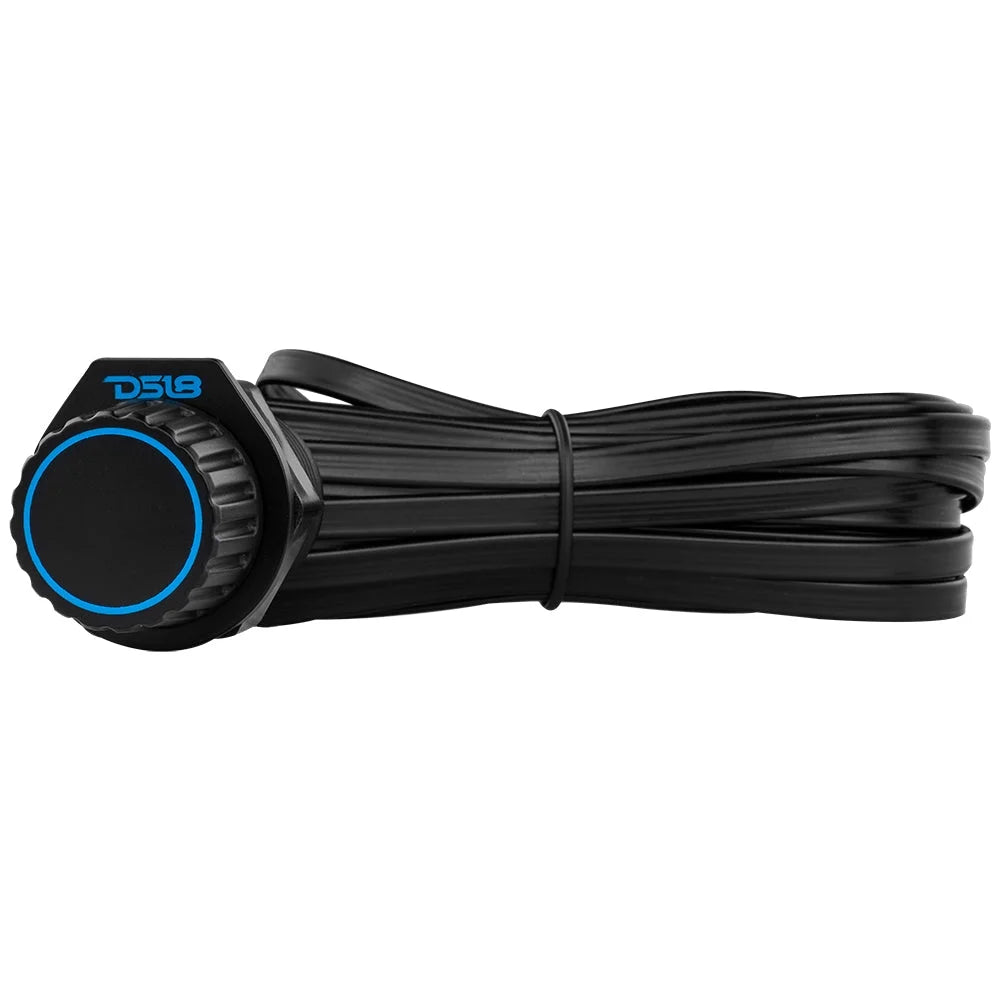

• Remote Level Control: Yes, Marine Grade (Waterproof)

Measurement

• Overall Length: 14.3" / 365mm
• Overall Wide: 4.5" / 116mm
• Overall Height: 1.7" / 43mm
• Heatsink Length: 13.3" / 340mm

• 5-Channel Marine Amplifier
• Total Watts (Peak): 3600W
• Class D Circuit Design
• IPX5 Water resistant grade
